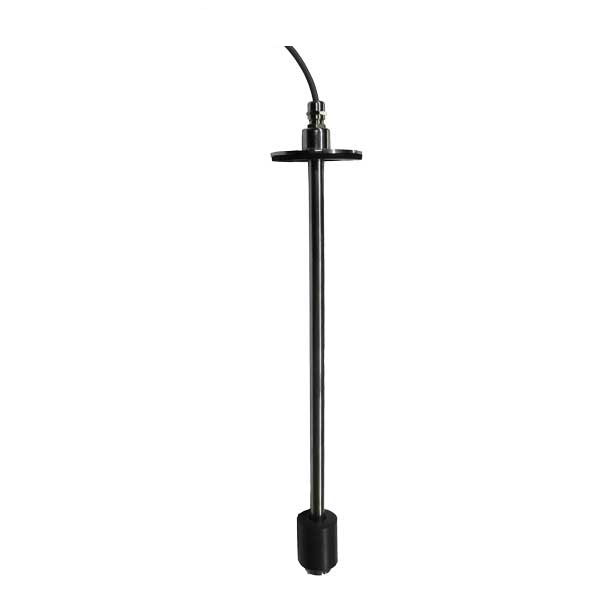

AN SERIES FLANGED CHROME LEVEL SENSOR

TANK FITTING TYPE     : DN 15-20-25-32-40-50PN10/16 flange,  5 punched flange or special flange

TANK ASSEMBLY TYPE: Mounting from  top of the tank

BODY MATERIAL         : Stainless Chrome- AISI 304 - AISI 316

FLOAT TYPE                : Polyurethane (P.Ü.) / According to liquid type can use  polythene (P.E.) or chrome

LENGHT                       : Can produced in desired length between 11 cm - 250 cm

SENSOR OUTPUT        : 2 or 3 wires, 10-180 ohm / 0-190 ohm / 240-30 ohm or special ohm range

COMPATIBLE GAUGES : VDO, KUS, WEMA, VETUS, UFLEX, FARIA, MORS,..

OPTIONAL CONTACT OUTPUT : Contact can be placed at the lowest and highest points

MEASUREMENT SENSITIVITY  : Standard 2 cm,as specially can be manufactured with 1 cm measurement range

OPERATING VOLTAGE              : 12-24 Volt DC

OPERATING TEMPREATURE    : 0 - 70 °C

OPERATING PRESSURE            : 0 - 1 Bar

PROTECTION CLASS                  : IP68

ELECTRIC CONNECTION           :  PG7 rakor / 2x0,34 or  3x0,34 mm² - 50 cm cable

USAGE AREAS                            : Fuel, dirty water, fresh water, oil, bilge ..etc. tanks

CERTIFICATE                               : Türkloydu type approval certificate
