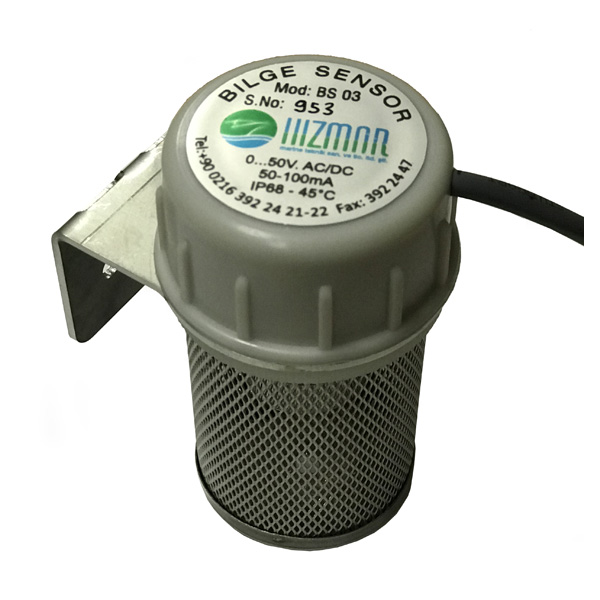

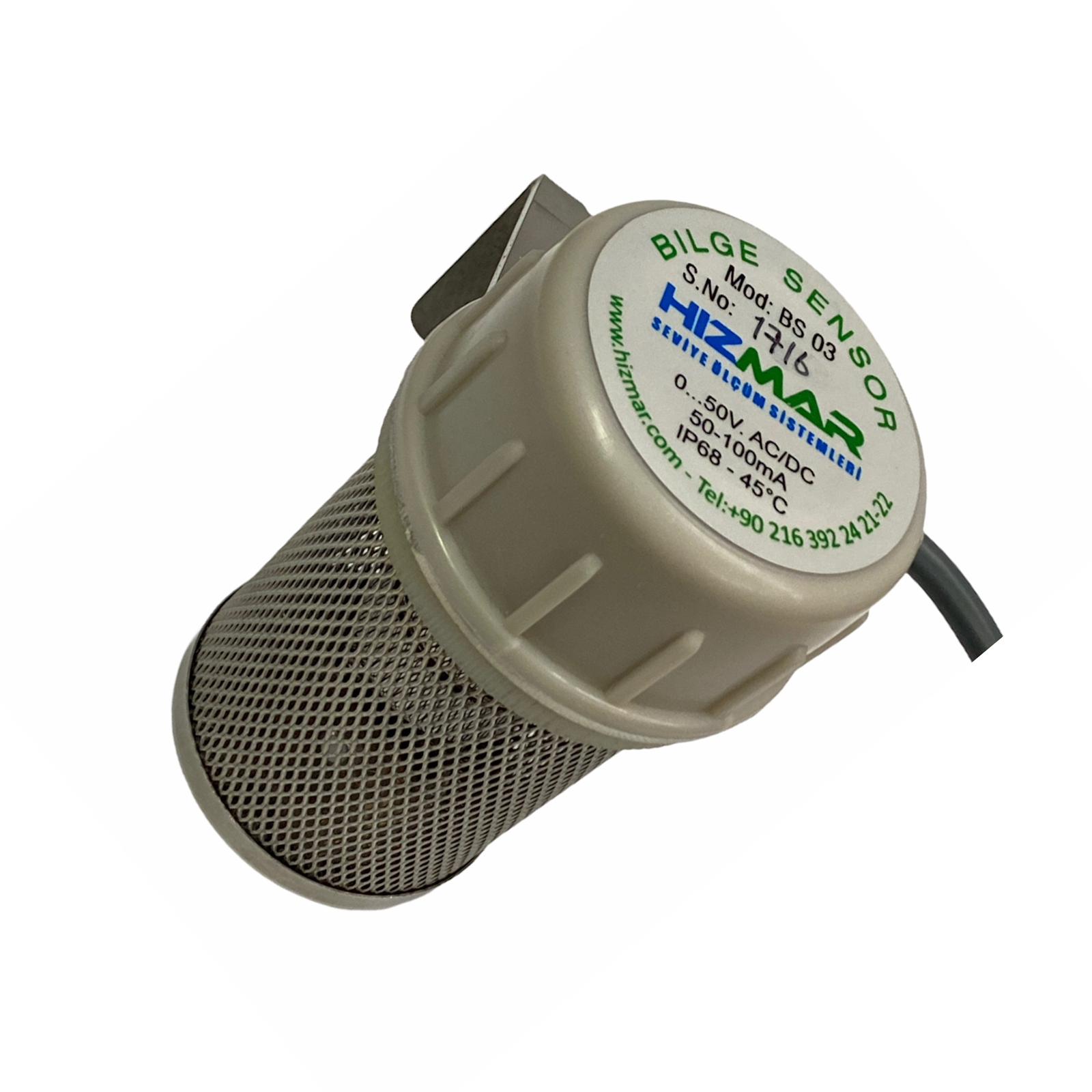

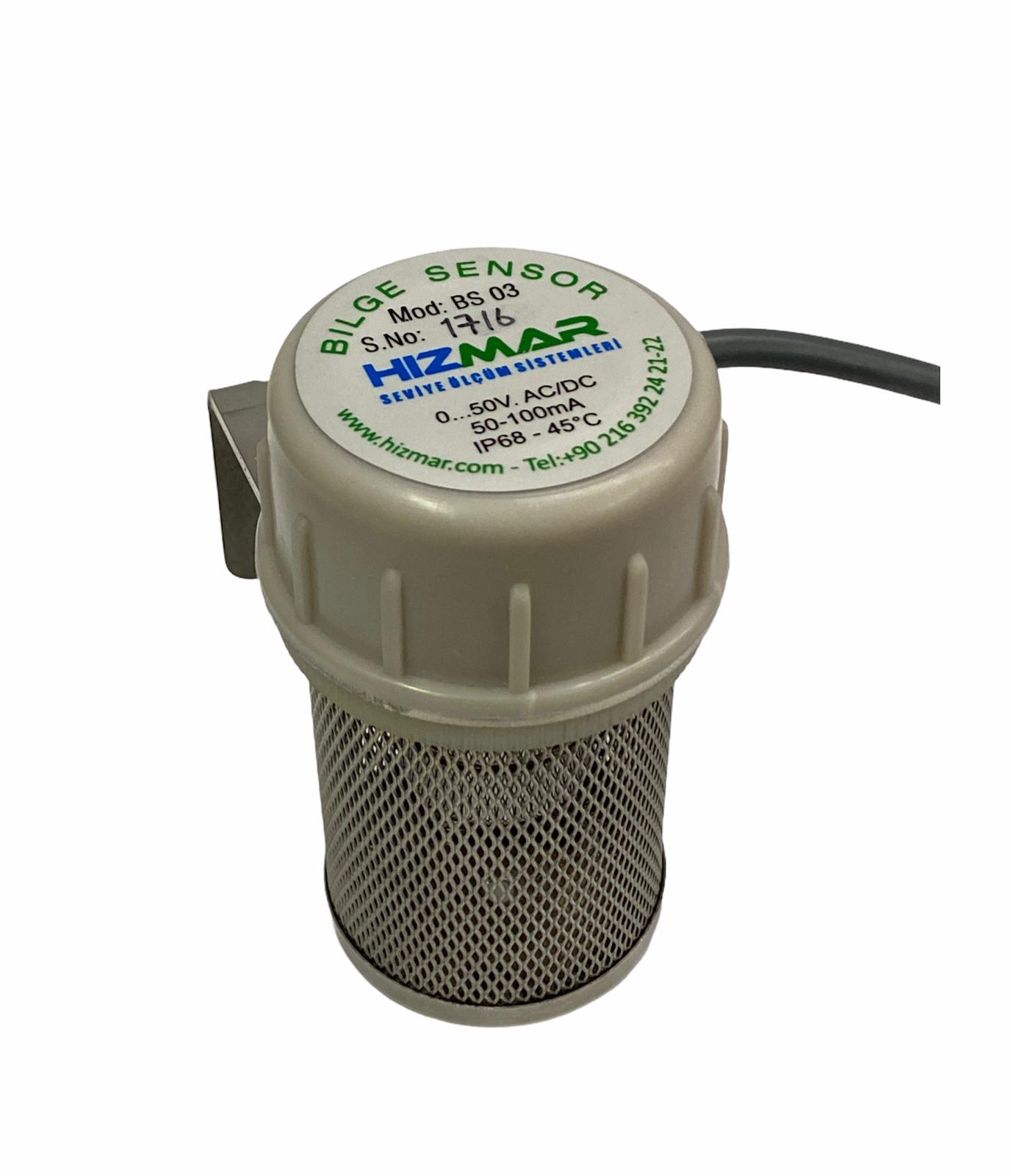

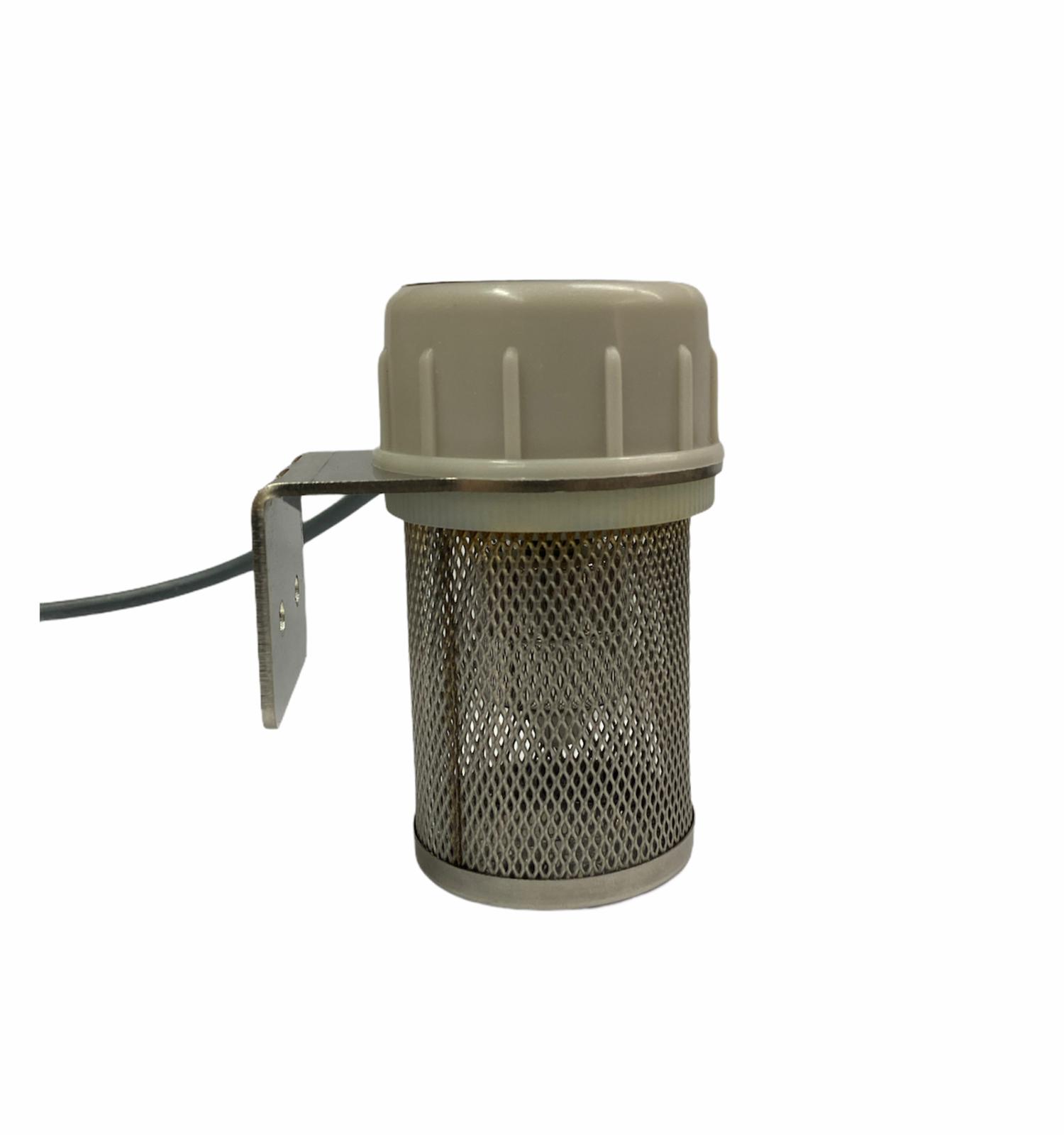

BS 03 – BILGE ALARM SENSOR

Bilge alarm sensor BS 03  is used to keep the liquid level under control or to give alarm when it reaches a certain level.

Bilge alarm sensor  is designed to use in bilges of marine vehicles such as boats / yatchs .Also can be used in places such as a zone, room, well or elevator shaft to get warning  when water comes required level.

With its protective grille, it is not affected by dirt or substances that may be contained in the water.

Bilge Alarm Sensor BS03 has TürkLoydu type approval certificate and is suitable for use in classified marine vessels.

SPECIFICATIONS

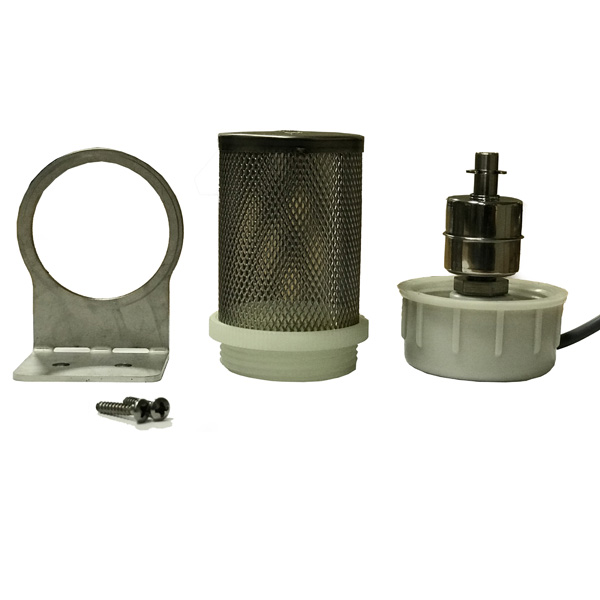

TANK FITTING TYPE             : Screw mounting via Chrome Bracket

BODY MATERIAL                   : Chrome

DIMENTIONS                            : Diameter 60 mm Body length 100 mm

SWITCH OUTPUT                  : N.O. switch, with turning upside the float N.C. switch.

OPERATING VOLTAGE       : 0-50 Volt AC/DC

OPERATING CURRENCY   : 100 mA

OPERATING TEMPREATURE     : 0 - 45 °C

OPERATING PRESSURE               : 0 - 1 Bar

PROTECTION CLASS                    : IP68

ELECTRIC CONNECTION           : 2x0,35 mm² - 100 cm cable

CERTIFICATE  : Türkloydu type approval certificate
