HIZMAR LEVEL SENSOR
The liquid
level sensors that we produce are float type sensors with signal output,
operate by using the magnetic level measurement principle.
Float type
sensors, one of the first and primitive measurement techniques, were developed
by using the buoyancy of the liquid and the magnetic level measurement
principle. It has been preferred for level determination of many liquids with
its simple structure, long life and reliability.
As a company,
we produce more functional products specific to the customer and the project by
blending our knowledge, R&D studies and workmanship with quality
components. We continue to bring new values to ourselves and our country by
fulfilling the requests of our customers that they consider unfeasible.
Liquid Level
Sensor Working Principle

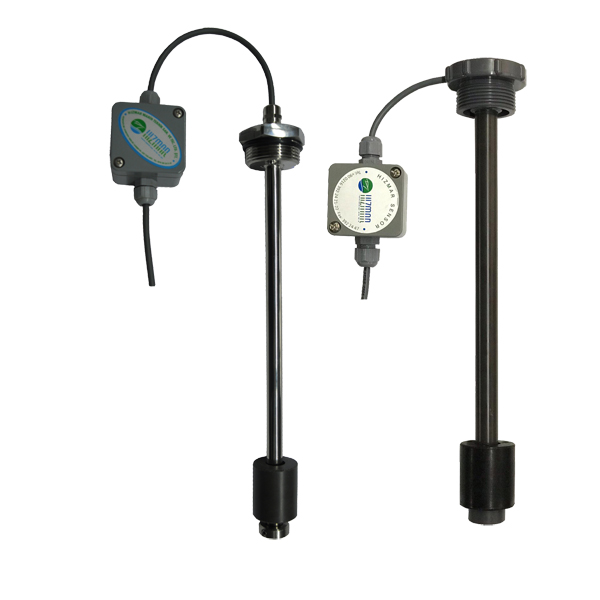

Hızmar level
sensor performs its task by affecting the magnetic float ball moving on the
sensor pipe depending on the liquid level, the glass reed contacts on the
electronic circuit inside the pipe. Visual liquid level control, audible and visual
alarm warning, or pump - solenoid start / stop operations can be applied simply
by transmitting the electrical signal generated by the effect of the contacts
to the Analog / Digital display or to PLC monitoring system or Control /
Command panel.
Level sensors
produced by Hızmar are classified under 3 main headings as Ohm output level
sensor, Current / Voltage output level sensor and Contact output level sensor
according to the characteristics of the system to be used.
Ohm Output
Model - AN SERIES
Current /
Voltage Output Model - MA SERIES
Contact
Output Model - HL SERIES
LEVEL SENSOR
WITH OHM OUTPUT : They are produced in a type to be connected directly to the
analog or digital indicators and they are level sensors produced in accordance
with the desired omage range according to the feature of the indicator to be
used. Optionally, alarm contacts can be placed at the upper and lower points of
these level sensors.
LEVEL SENSOR
WITH CURRENT / VOLTAGE OUTPUT : These level sensors are produced with mA or
voltage outputs of the type to be connected to PLC systems, Digital or Analog
Control units, 4-20mA or 0-5 V compatible indicators. Optionally, alarm
contacts can be placed at the upper and lower points of these level sensors.

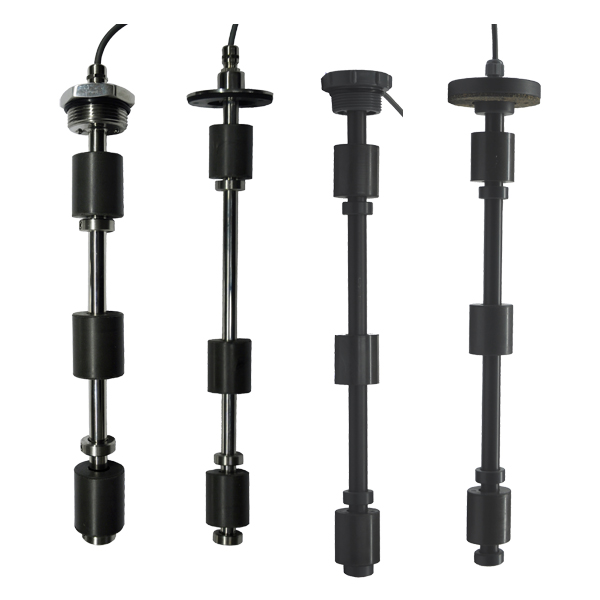

LEVEL SENSOR
WITH CONTACT OUTPUT : These sensors can be connected to pump start / stop
systems, empty / full alarm warning systems, PLC systems, Digital and Analogue
Control units to give only open / closed contact output. The contacts can be
produced by placing up to 5 pieces in desired places within the sensor, with a
minimum of 5 cm approach to each other.

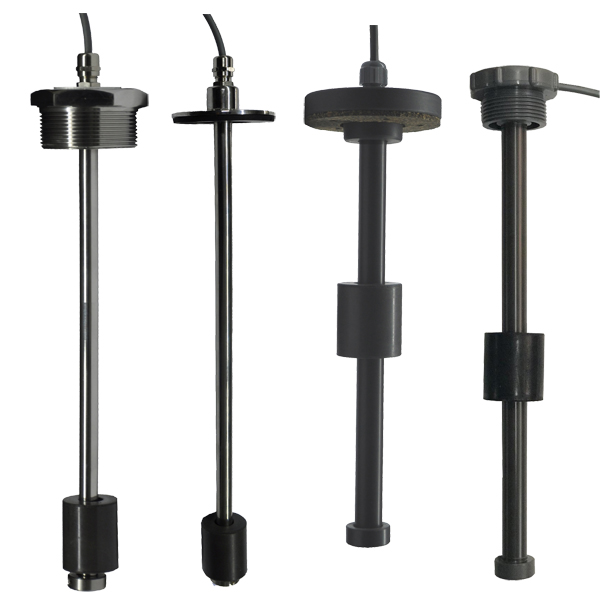

In addition,

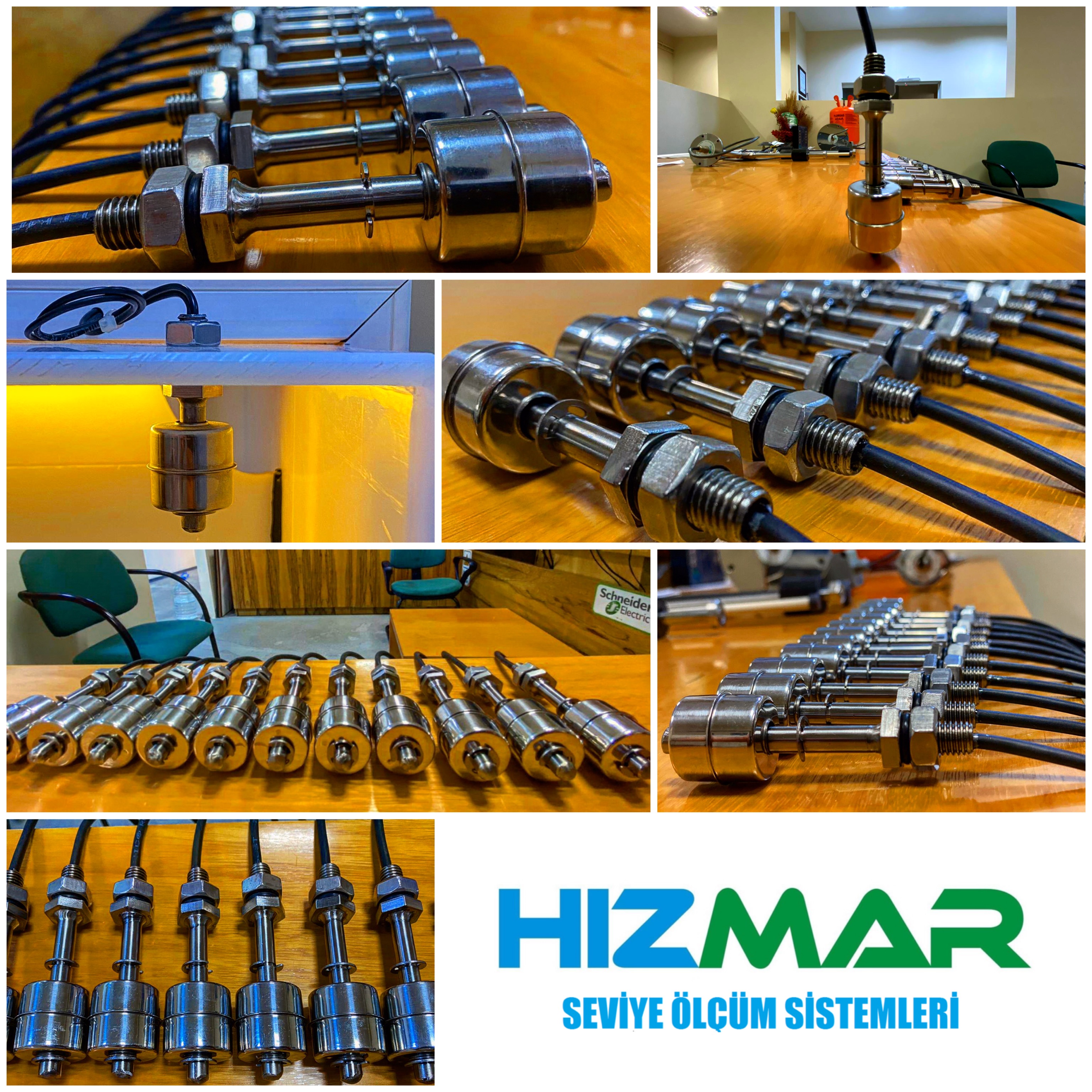

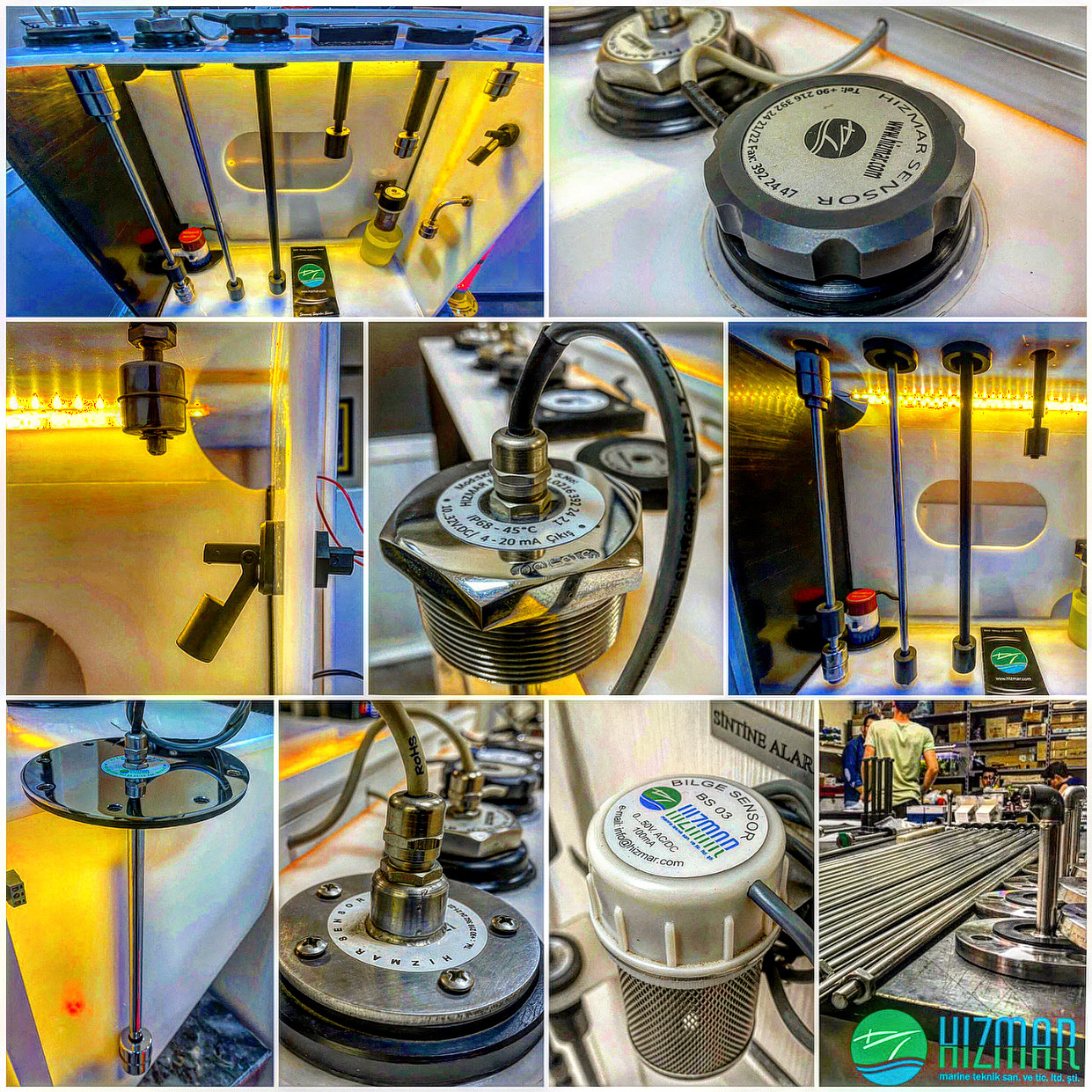

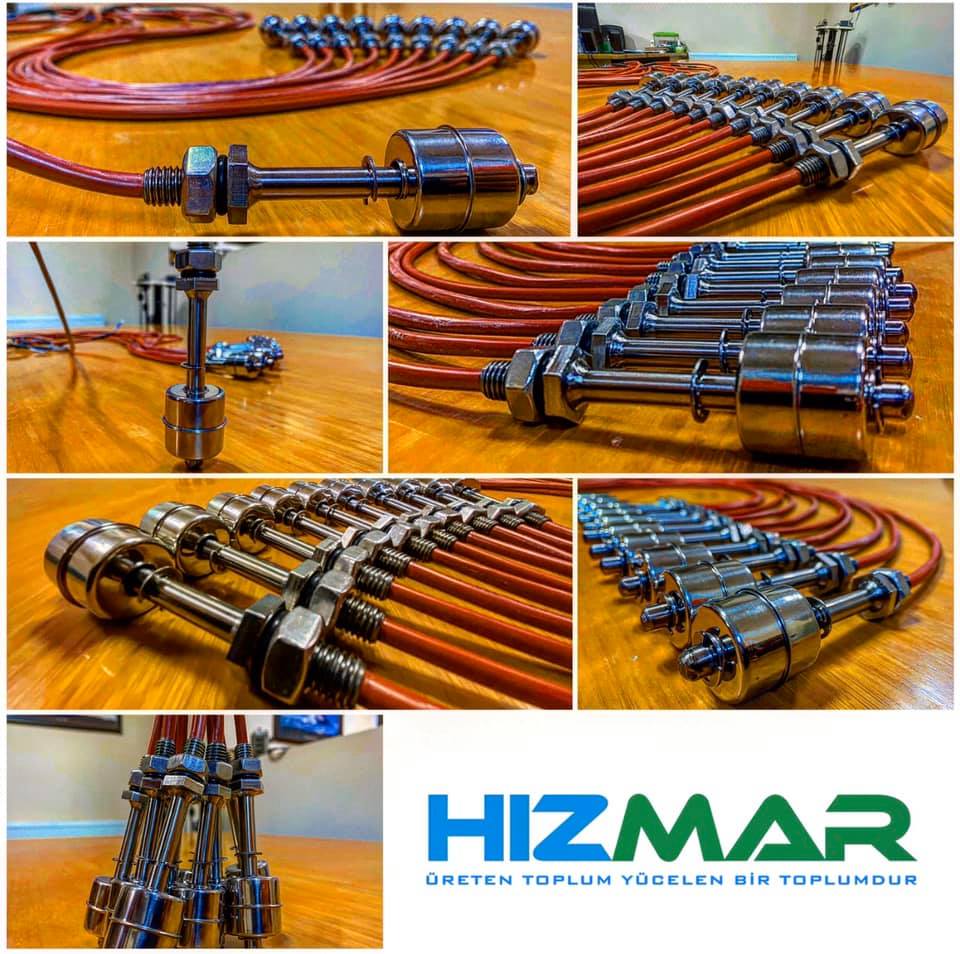

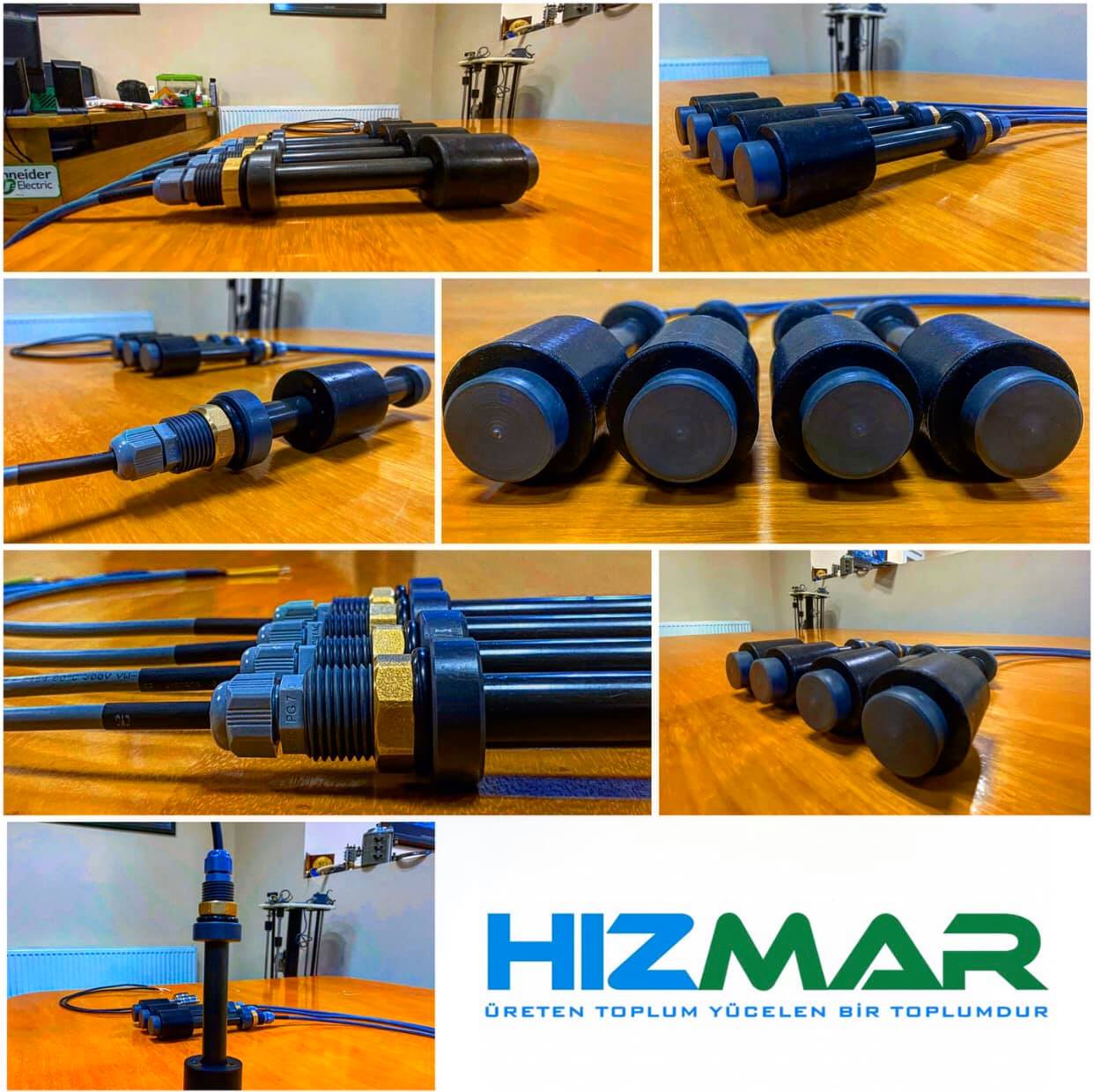

the level sensors that we produce are divided into models from stainless or
plastic material according to the liquid type, with threaded connection or
flanged according to the connection type.
"Whether
you want continuous level measurement, point level measurement or a combination
of both, call us for the liquid level sensors produced for your system."
Also we have
special production level sensor models, you can contact us for details and
level sensor price information.
