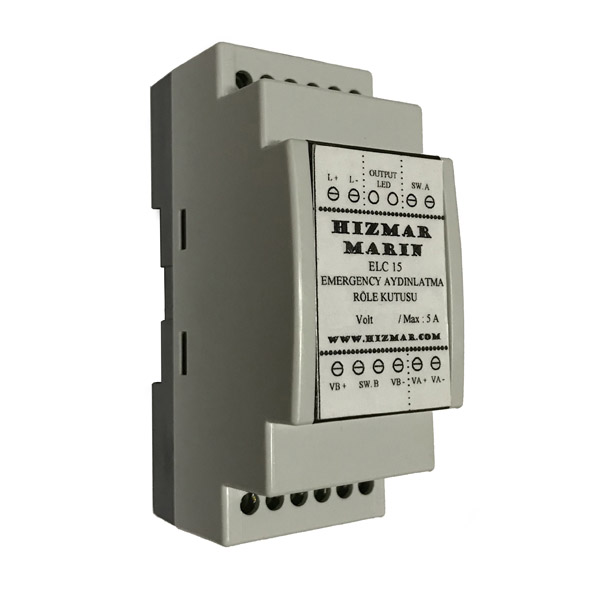

Emergency lighting relay box provides control of the emergency lighting armature which is designed and installed as emergency lighting on boats. Independently of the lighting switch, relay box can automatically activate the emergency lighting armature in case of a service supply failure or the emergency lighting armature can be activated by manually giving emergency supply to the card with the appropriate connection.

Supply Voltage Range: 12VDC - 24VDC - 220VAC (Different Cards)
Maximum Current: 5 Amps
Feeding Type: Emergency / Service
Dimensions: e.35 X b.86 X d.59 mm Rail type box
