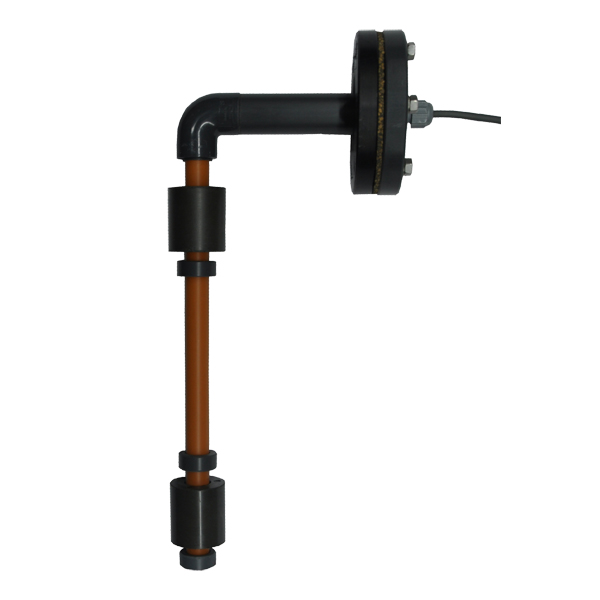

HL SERIES SIDE MOUNTING PVC LEVEL SENSOR

TANK FITTING TYPE     : 6 punched flange or special flange

TANK ASSEMBLY TYPE : Mounting from side of the tank

BODY MATERIAL         : Plastic PVC

FLOAT TYPE                : Polyurethane (P.Ü.) / According to liquid type can use  polythene (P.E.)

LENGHT                       : Can produced in desired length between 11 cm - 250 cm

SENSOR OUTPUT       :  Switch output, compatible with PLC systems

NUMBER OF SWITCHS : Maximum 5 pieces

OPERATING VOLTAGE             : 12-24 Volt DC

OPERATING TEMPREATURE   : 0 - 70 °C

OPERATING PRESSURE          : 0 - 1 Bar

PROTECTION CLASS               : IP68

ELECTRIC CONNECTION         : PG7 rakor / 2x0,34 or  3x0,34 mm² - 50 cm cable

USAGE AREAS  : Dirty water, fresh water, oil, bilge ..etc. tanks
